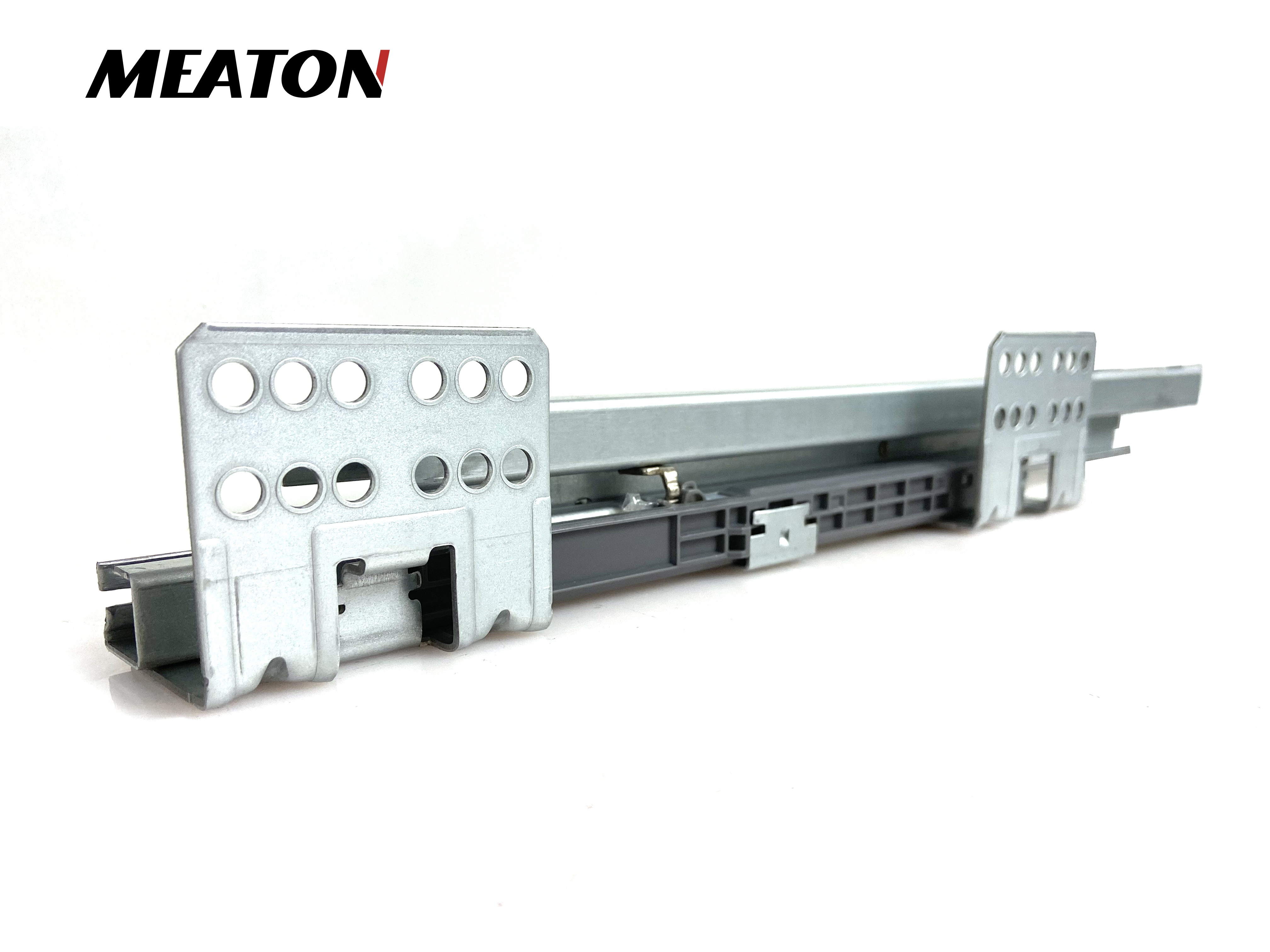

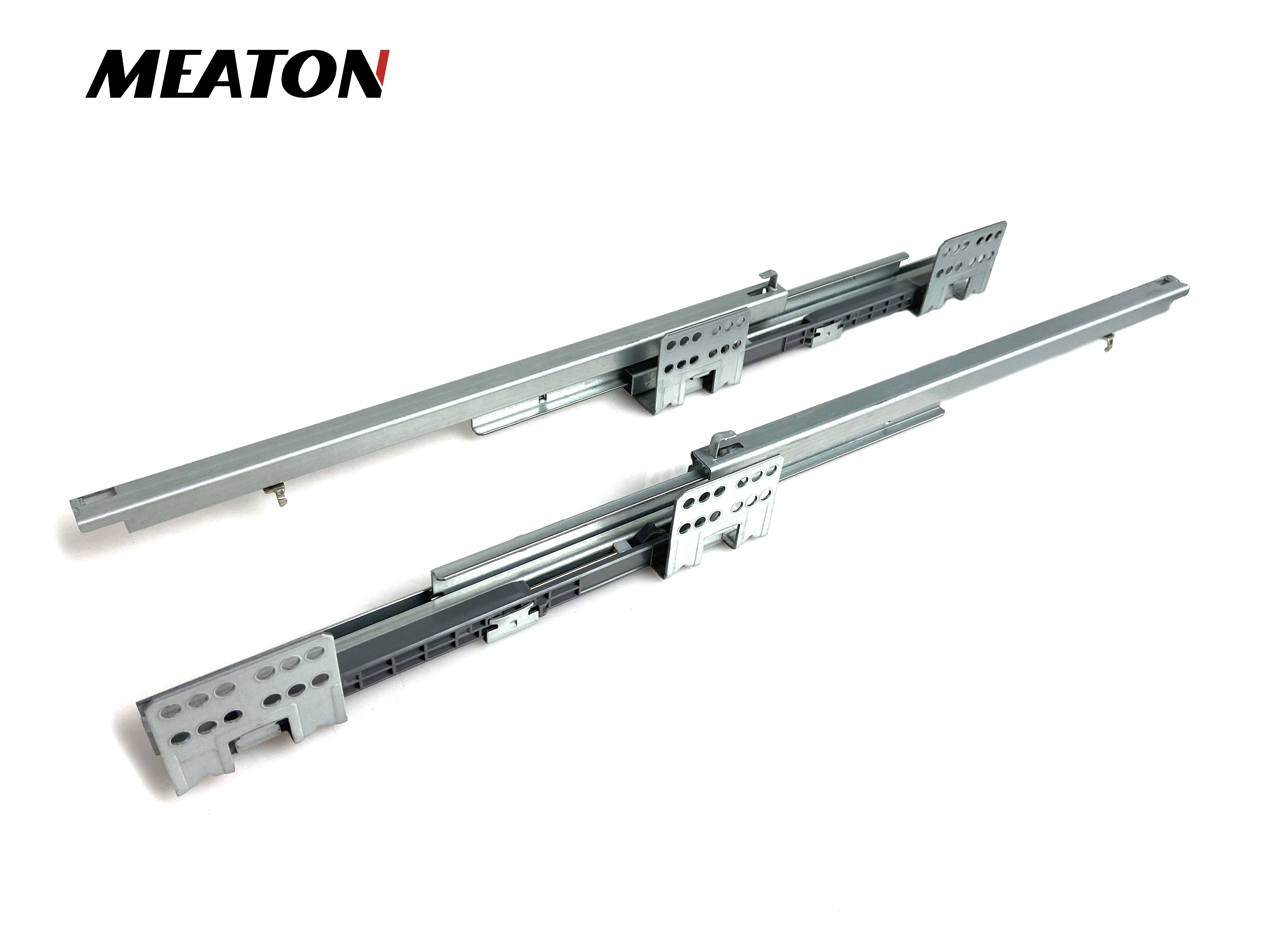

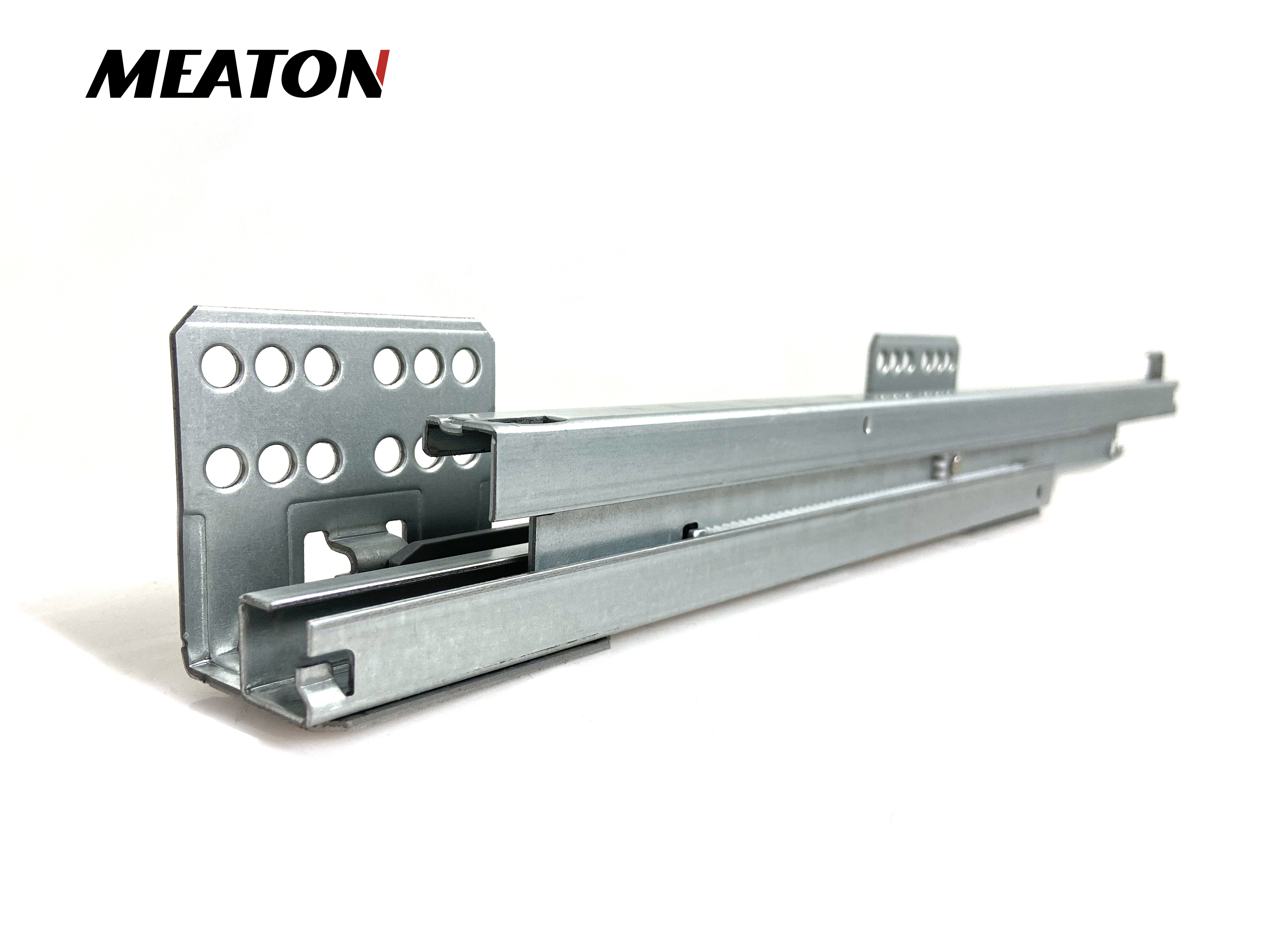

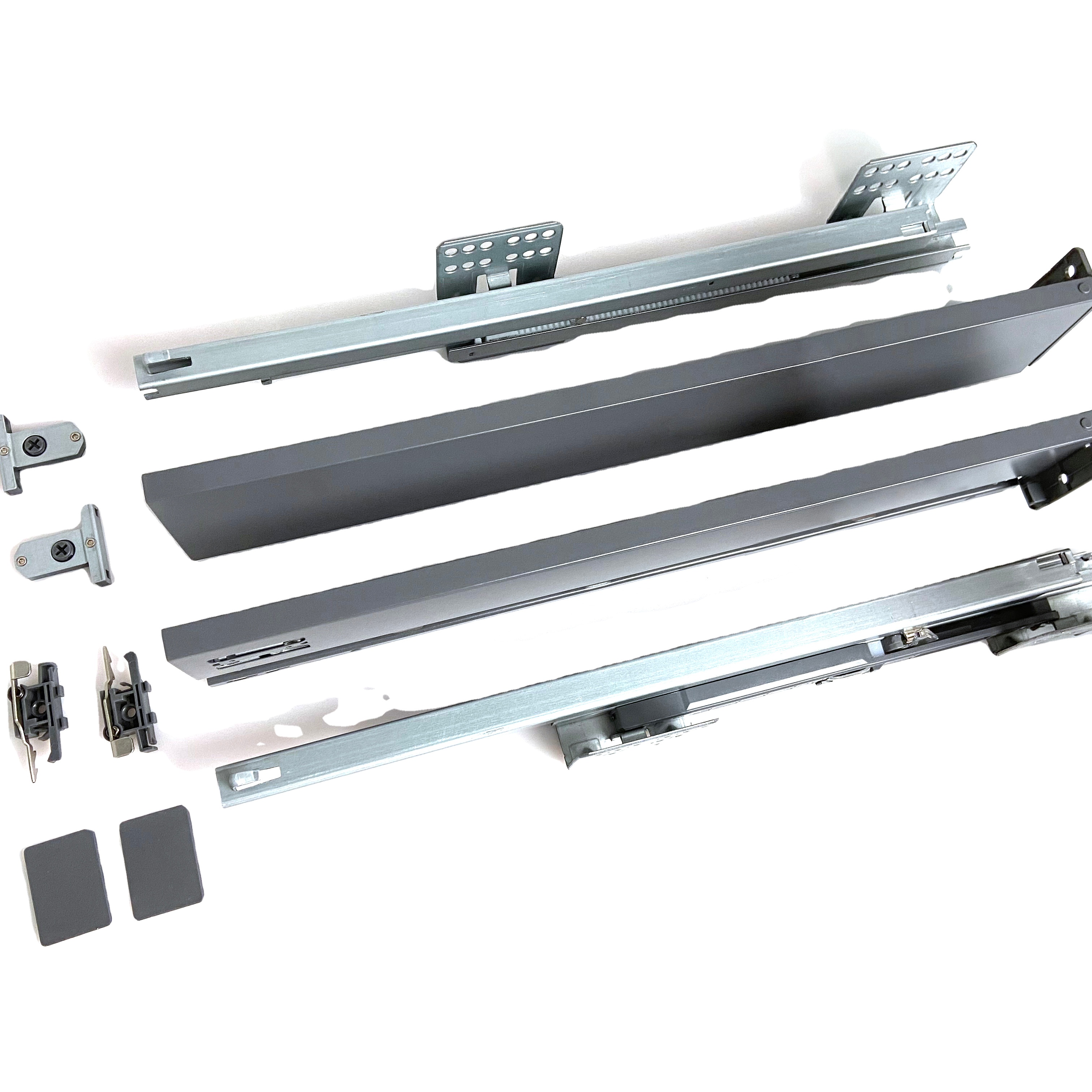

Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
1 / 5
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close
Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close

Meaton Factory Price Kitchen Drawer System Soft-closing Slim Box Slim Drawer Box Metabox Drawer Slides Soft Close

Send Inquiry

Product Description

Product Showcase Banner

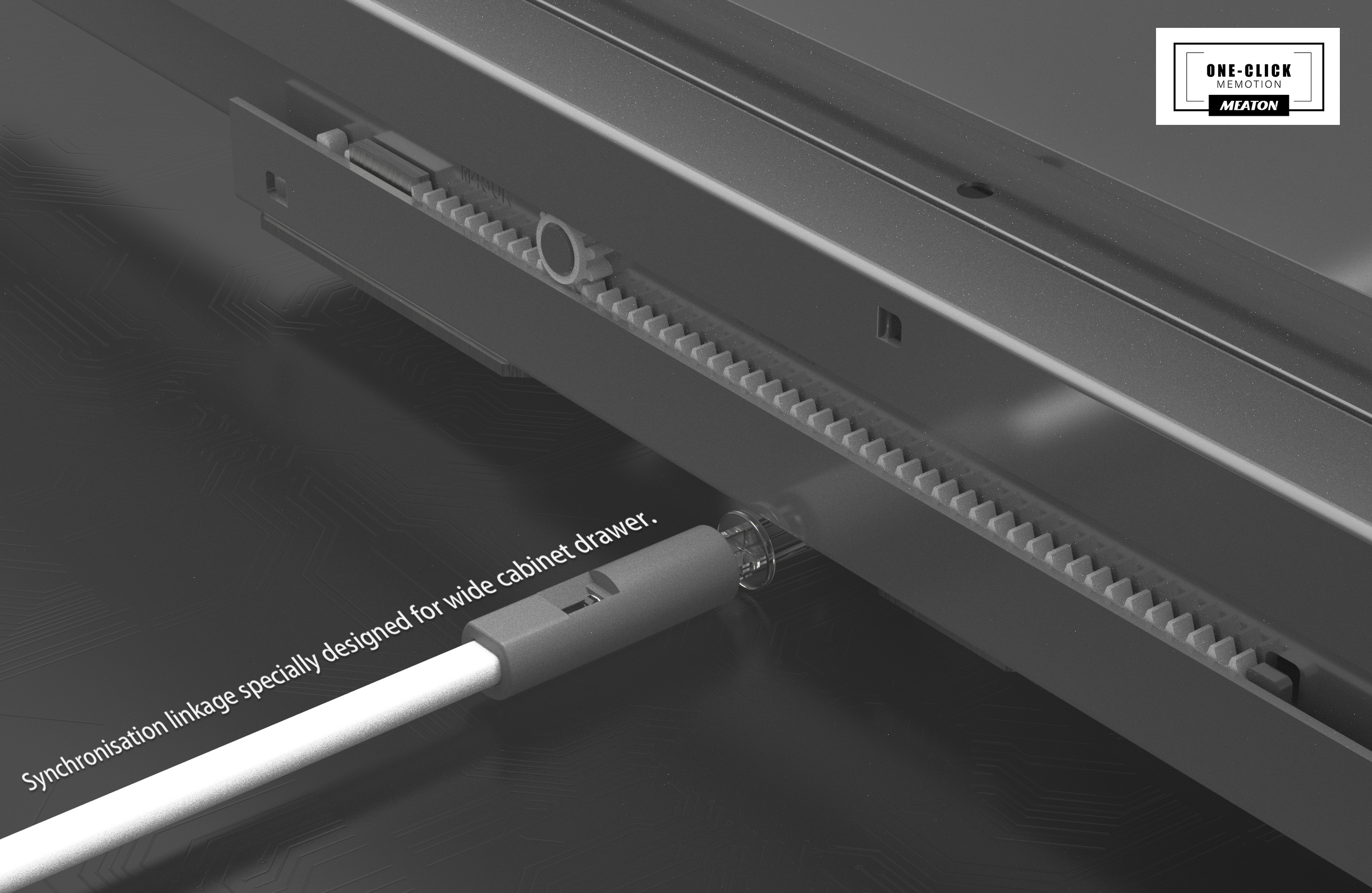

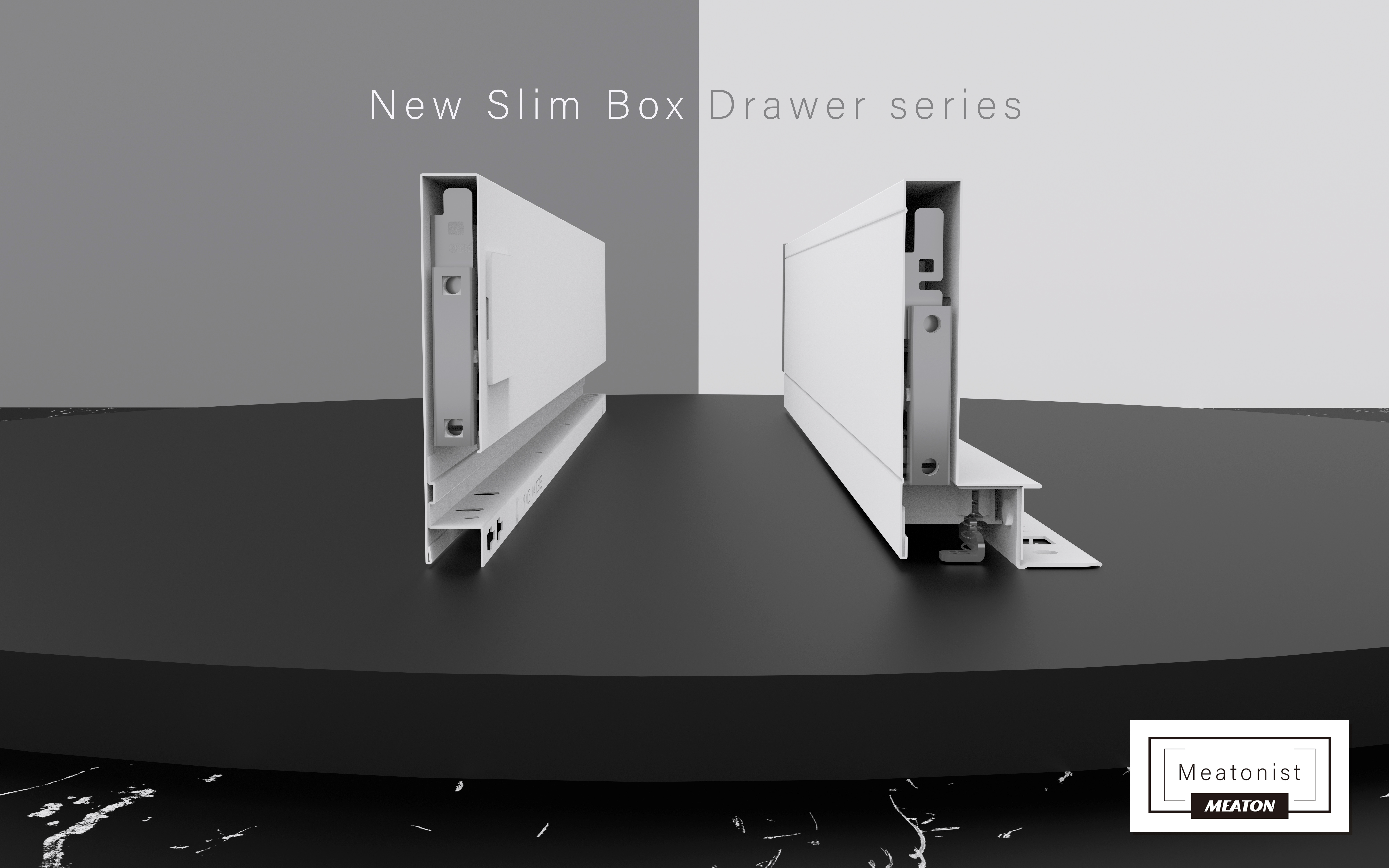

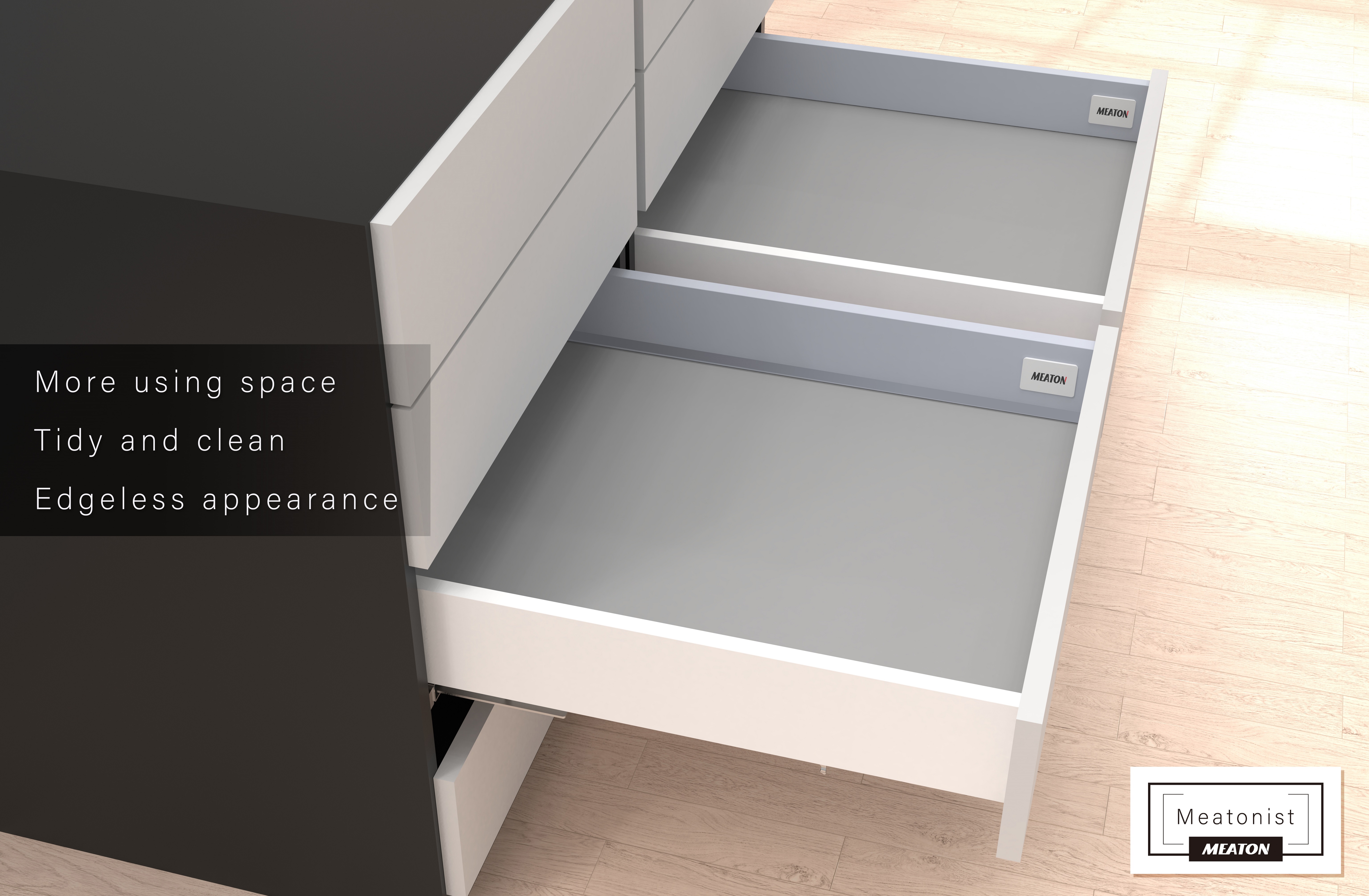

Drawer Box Detail 1 Drawer Box Detail 2 Drawer Box Detail 3

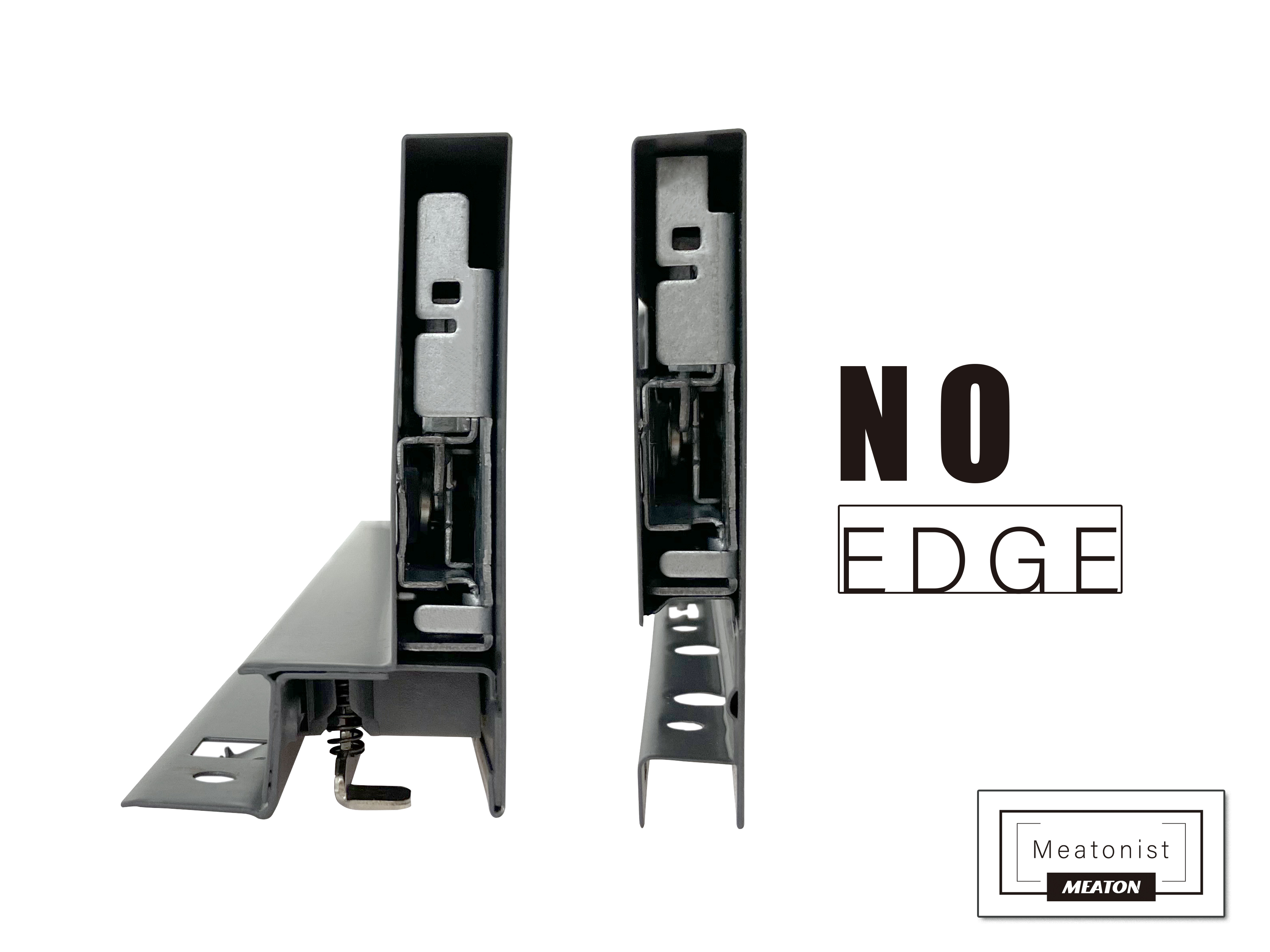

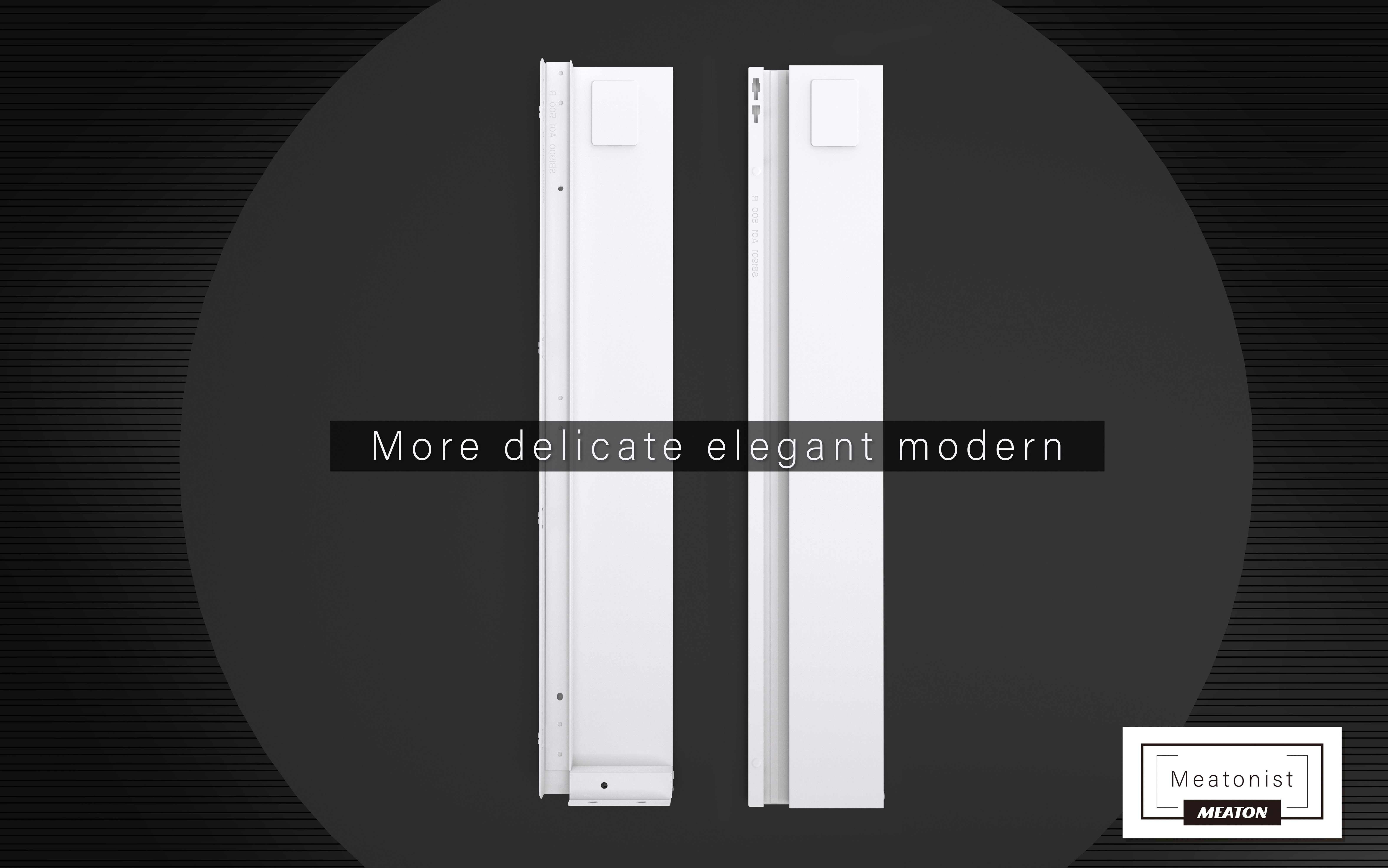

Drawer Box Detail 4 Drawer Box Detail 5 Drawer Box Detail 6

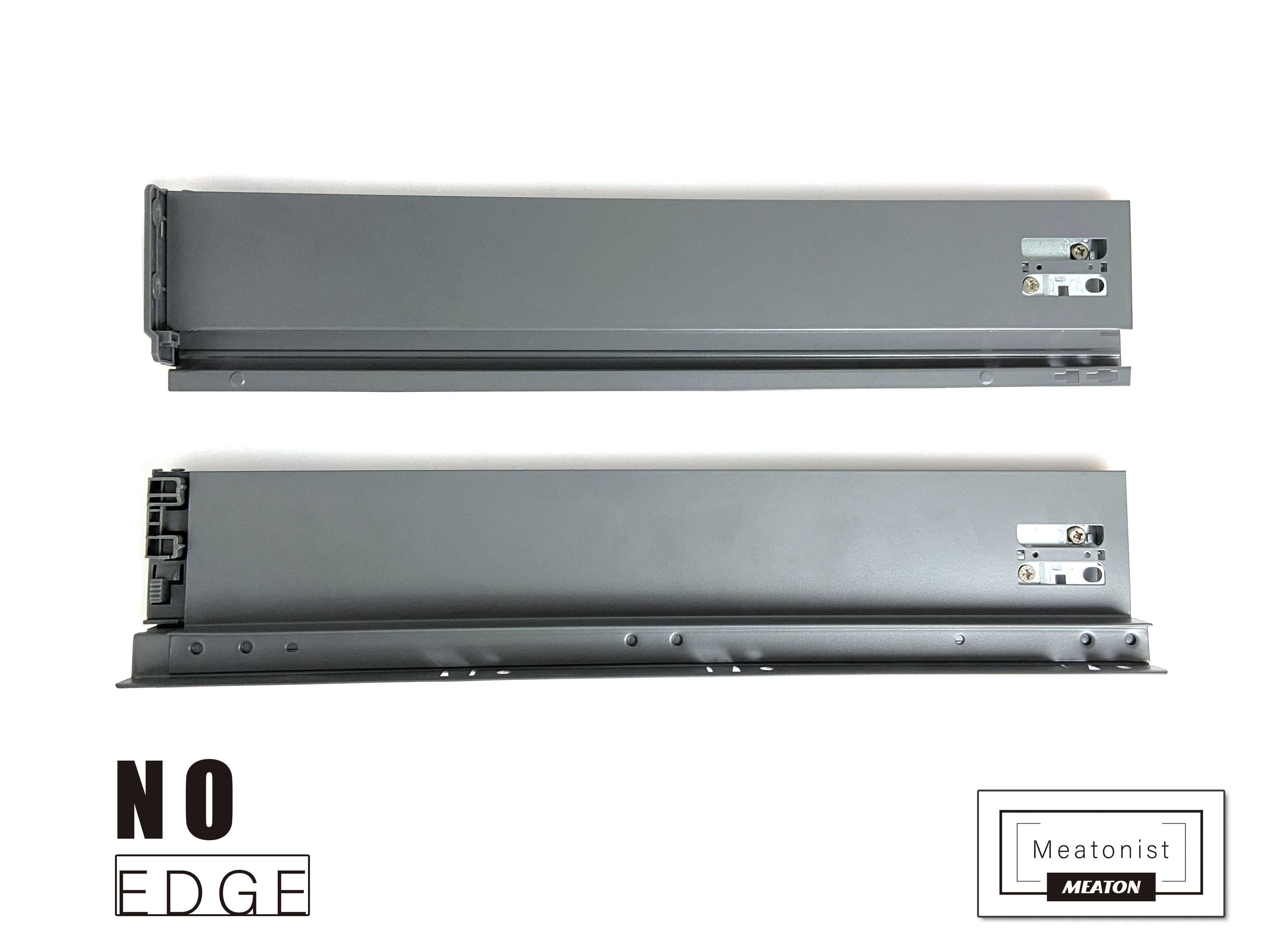

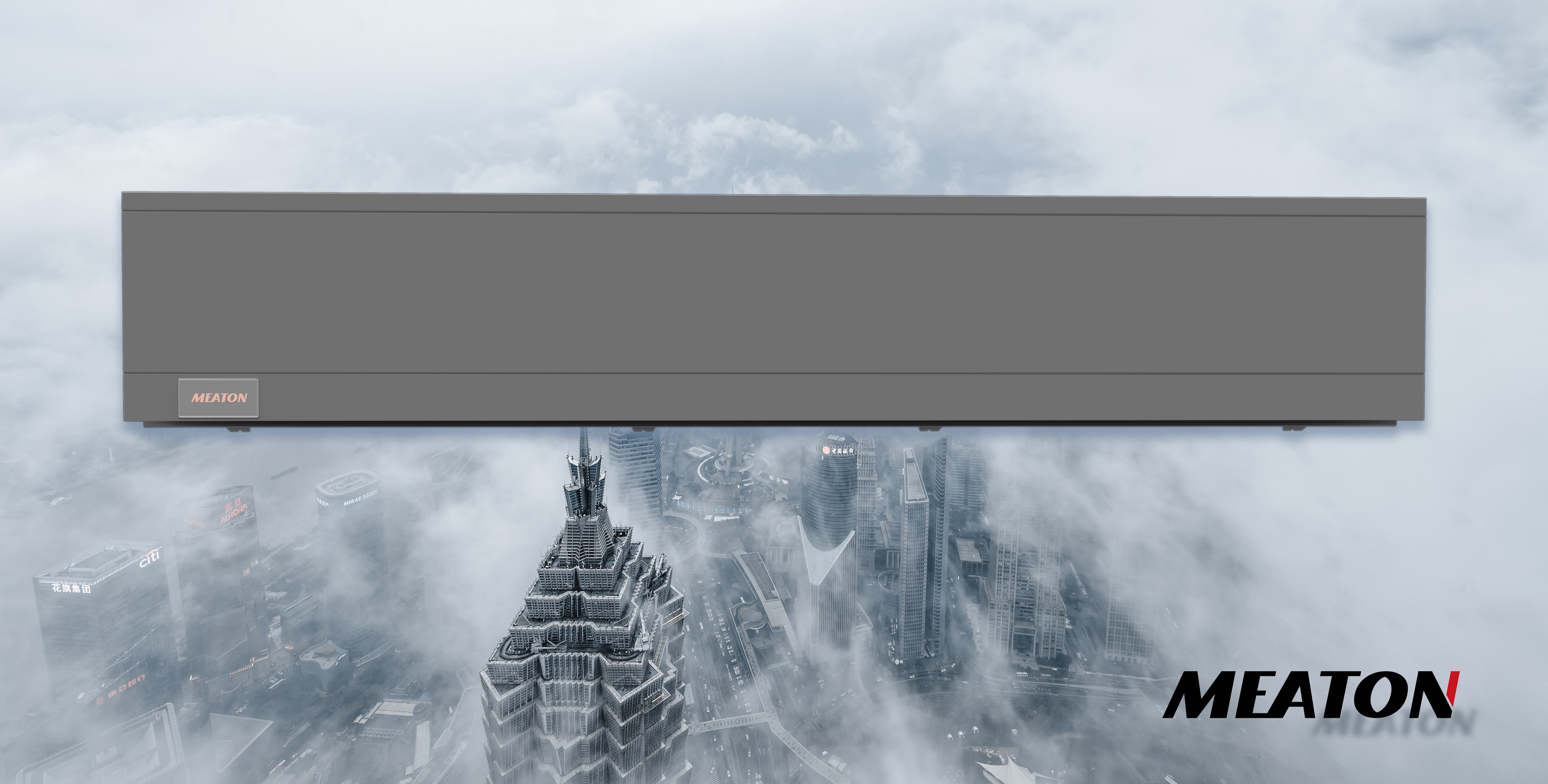

Drawer Box Detail 7 Drawer Box Detail 8 Drawer Box Detail 9
Product Parameters
Name soft-closing slim box slim drawer box metabox
Height dimension 63/101/148/180mm
Loading capacity 30kg
Size 270/300/350/400/450/500/550mm
Color Black/Sliver white/Sliver grey/Grayish white
Adjustable range Up&Down±1.5mm, Left&Right±1.5mm
Material Galvanized sheet + cold rolled steel
Life cycle More than 80,000 times
Function Synchronized soft closing
Salt spray test 48 Hours
OEM Support Welcome

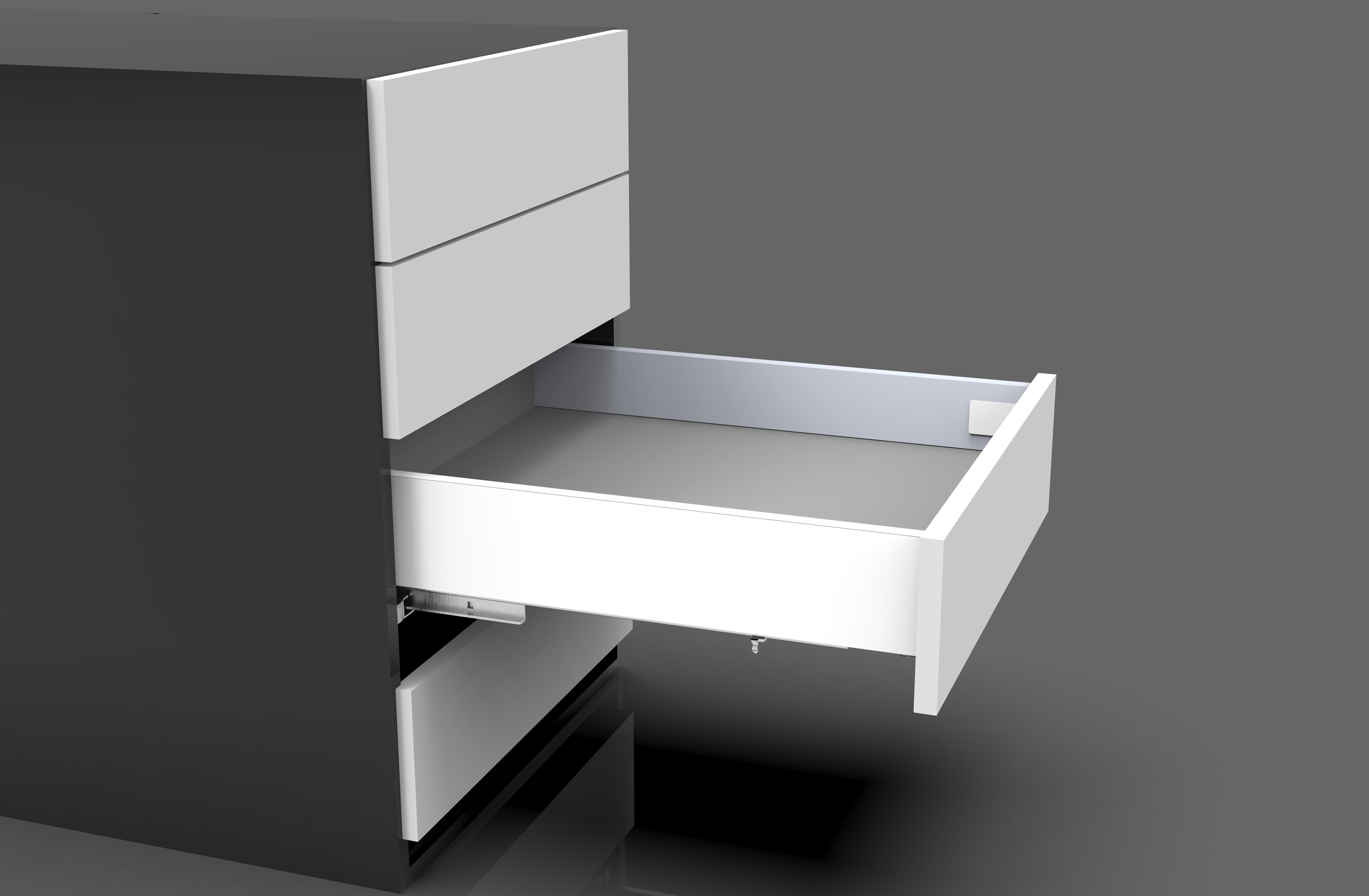

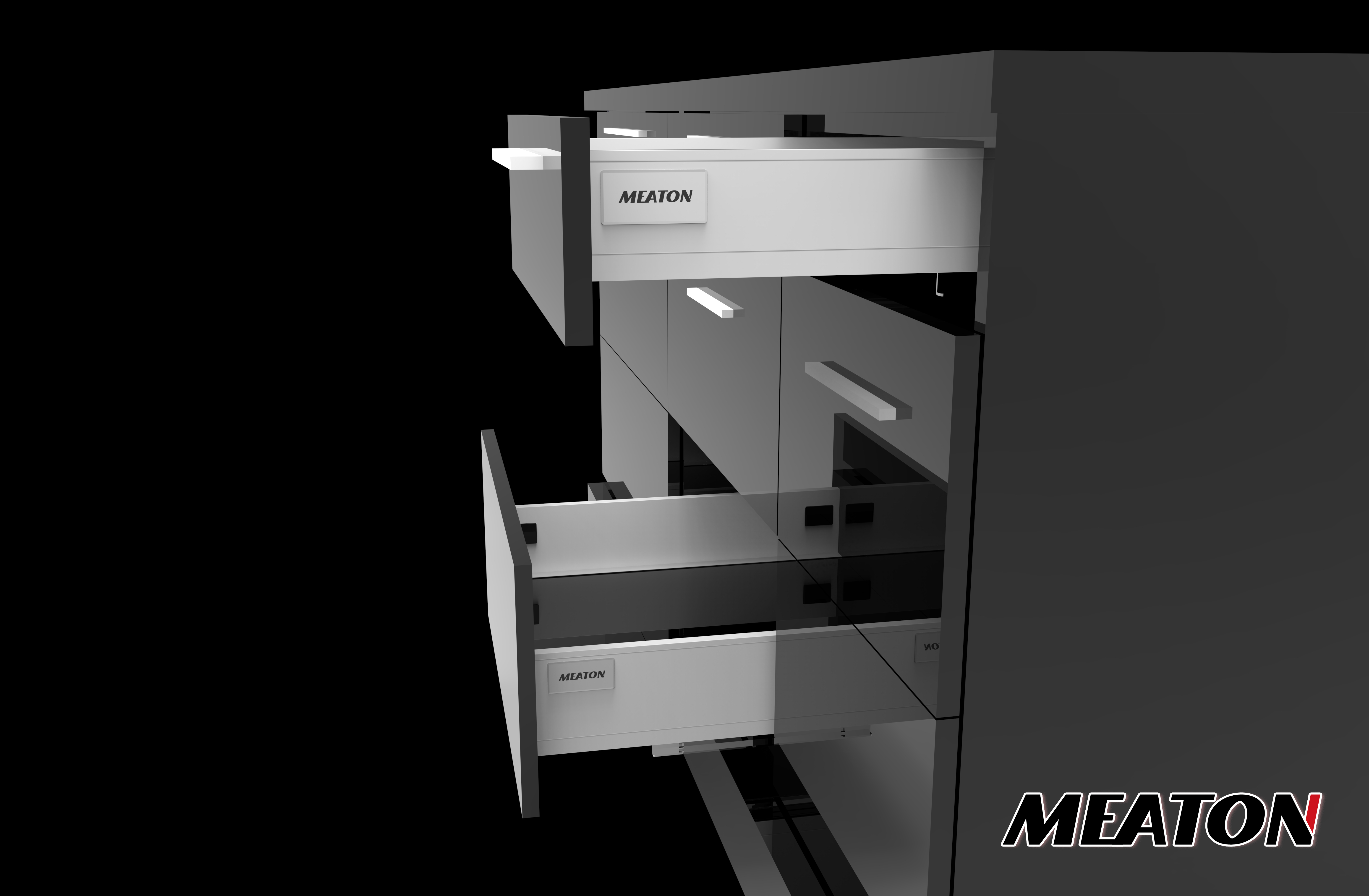

Feature Image 1 Feature Image 2 Feature Image 3

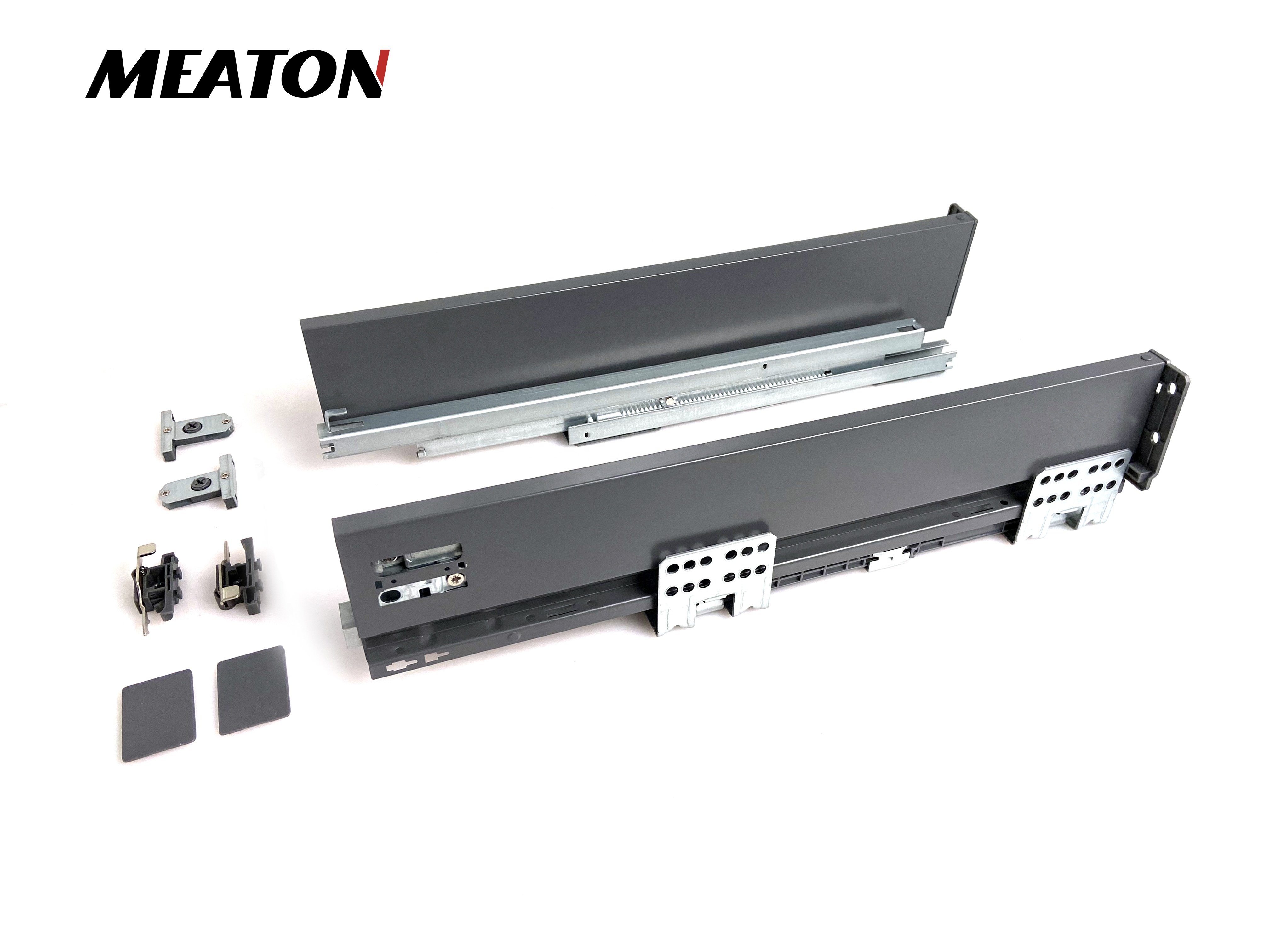

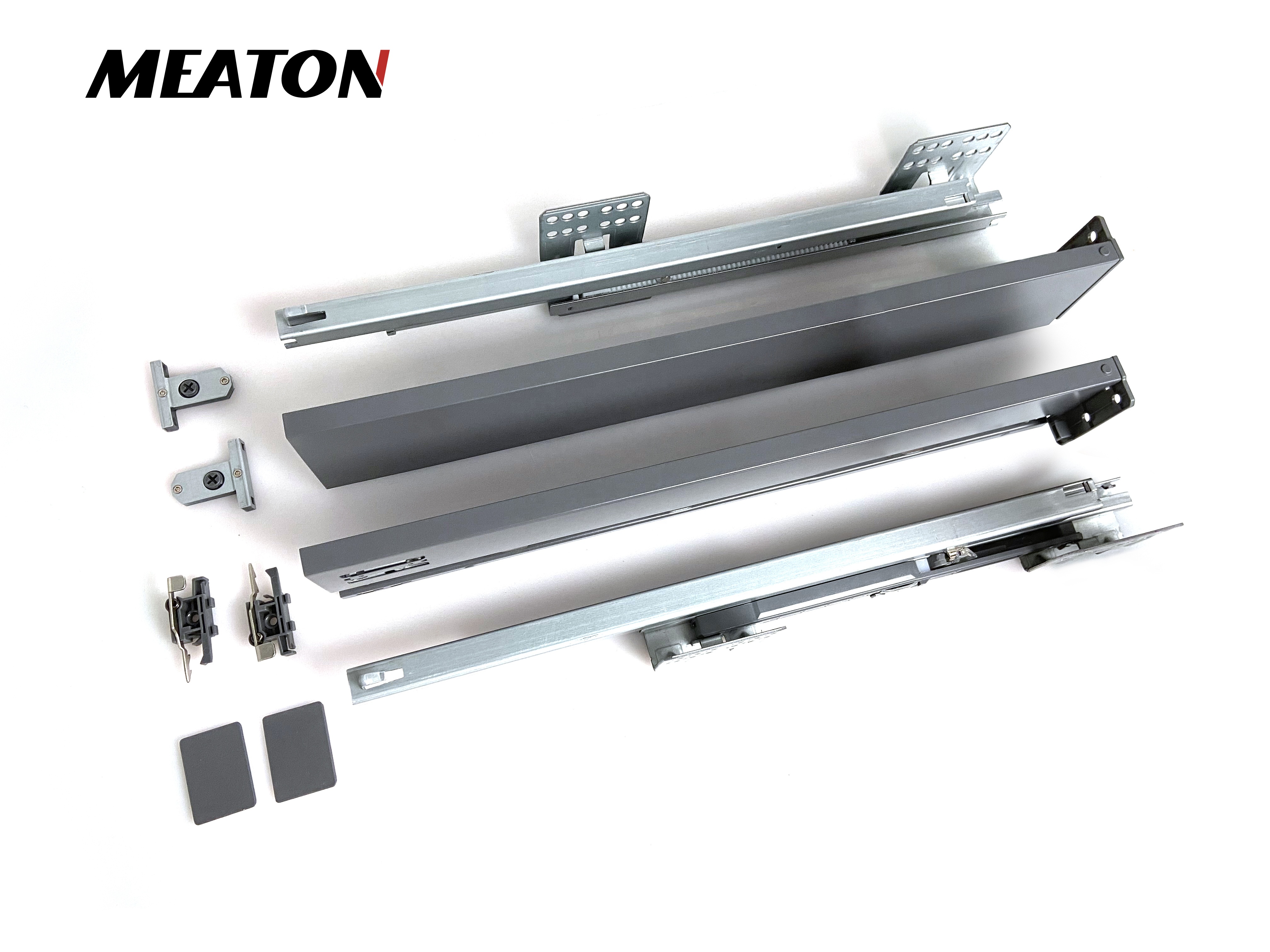

Feature Image 4 Feature Image 5
Technical Drawing 1 Technical Drawing 2

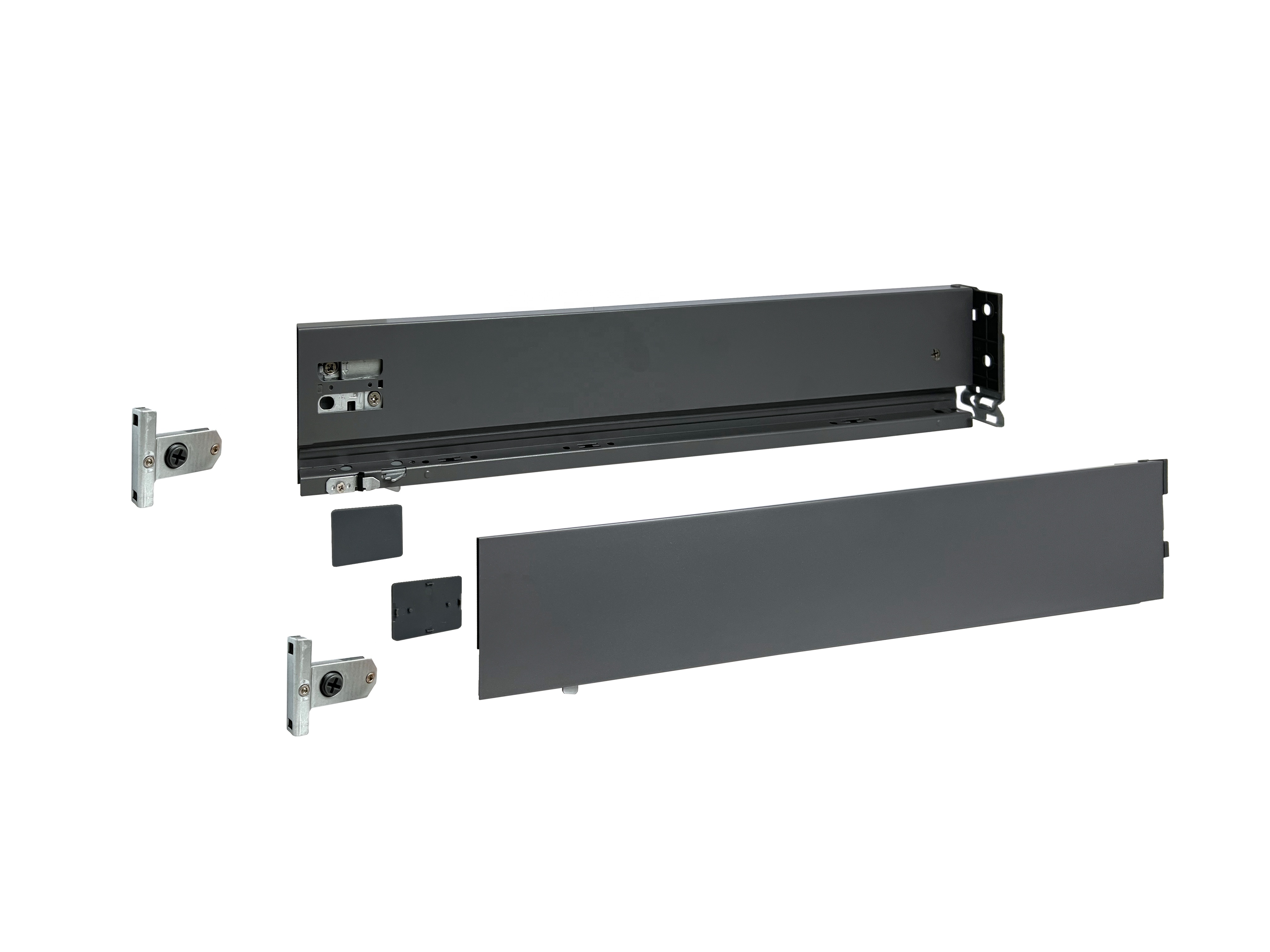

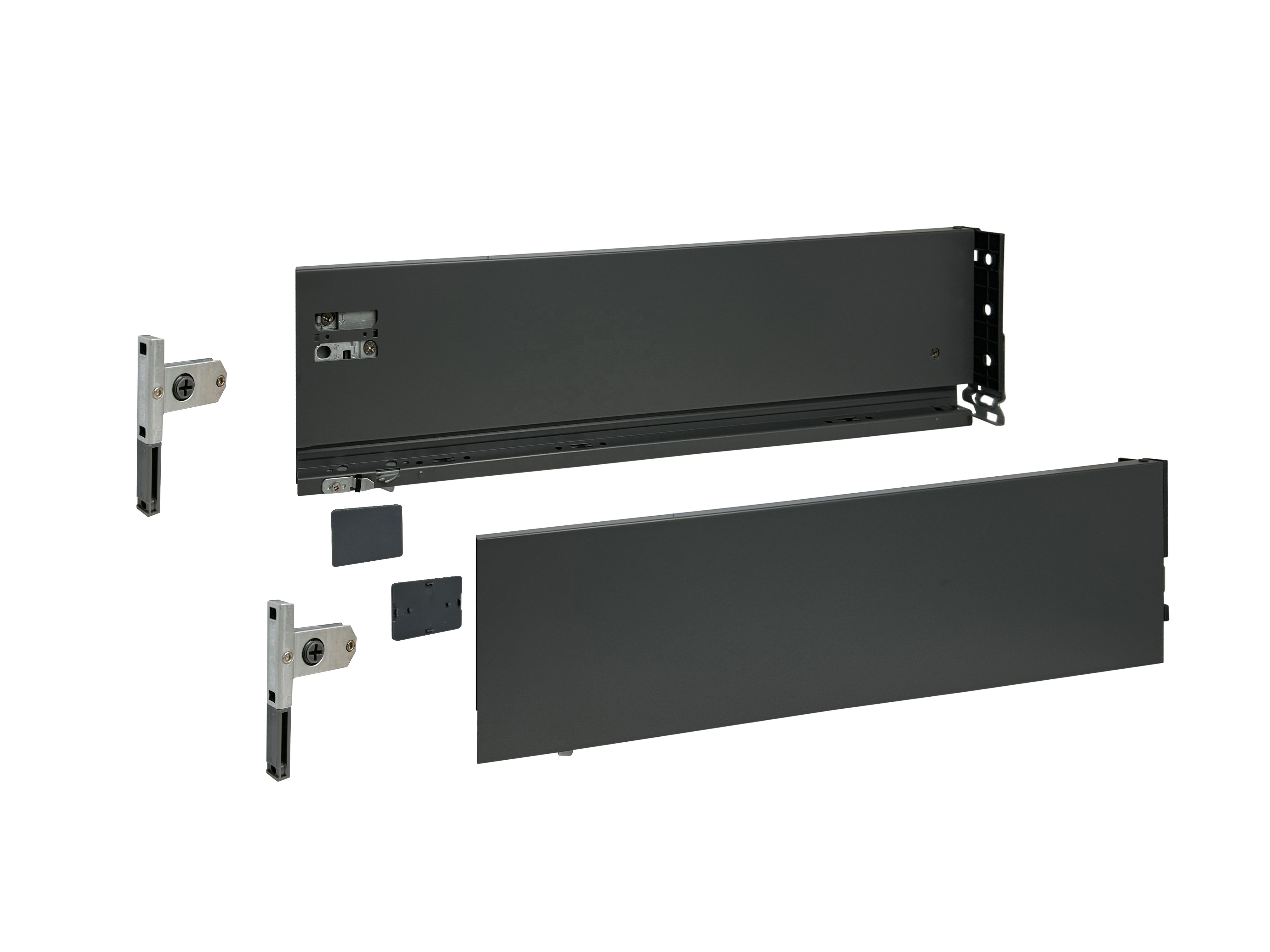

Technical Drawing 3 Technical Drawing 4

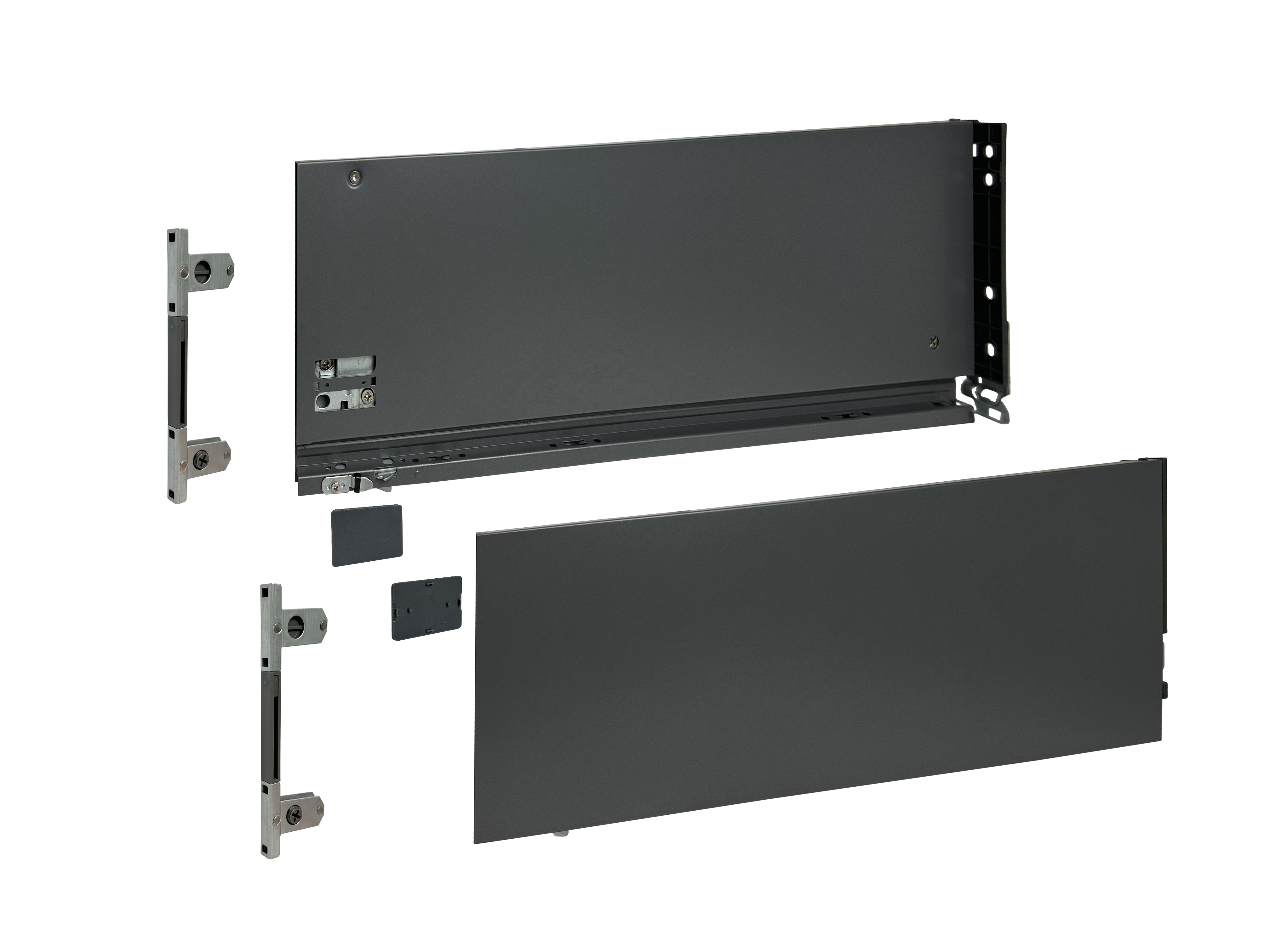

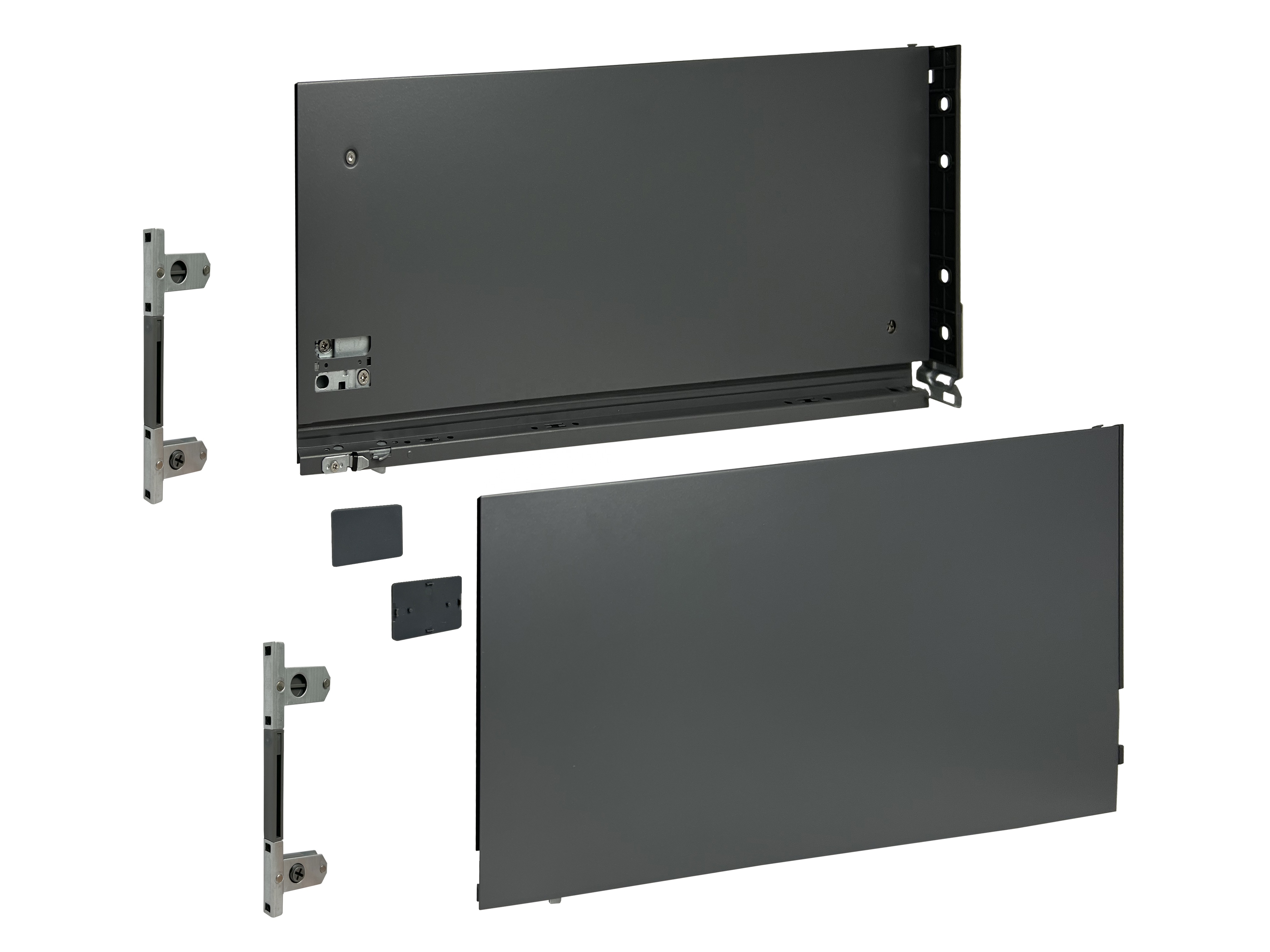

Technical Drawing 5 Technical Drawing 6
Middle Banner
Assembly Guide
Option 1 Option 2 Option 3
Option 4 Option 5 Option 6

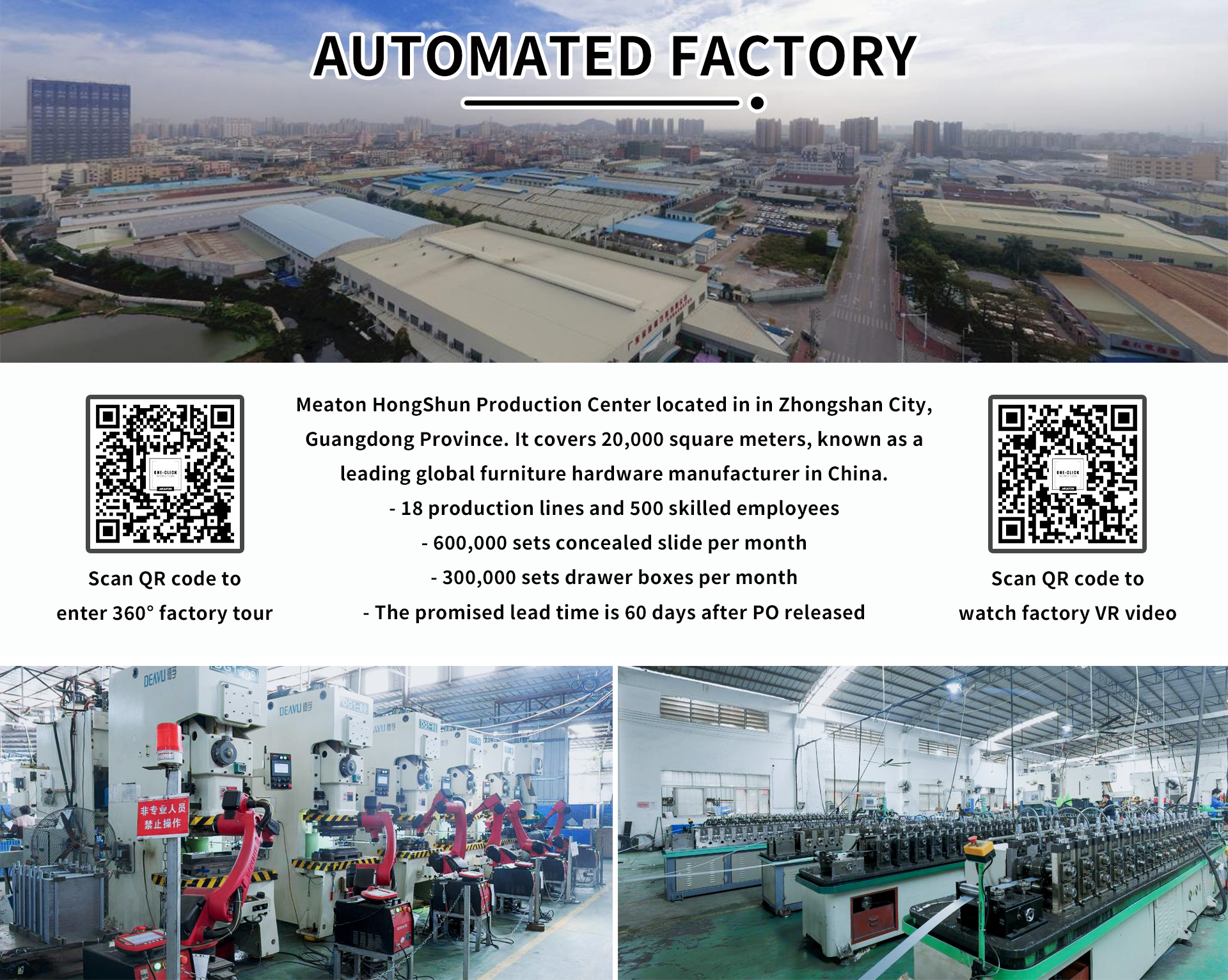

Option 7 Option 8 Option 9

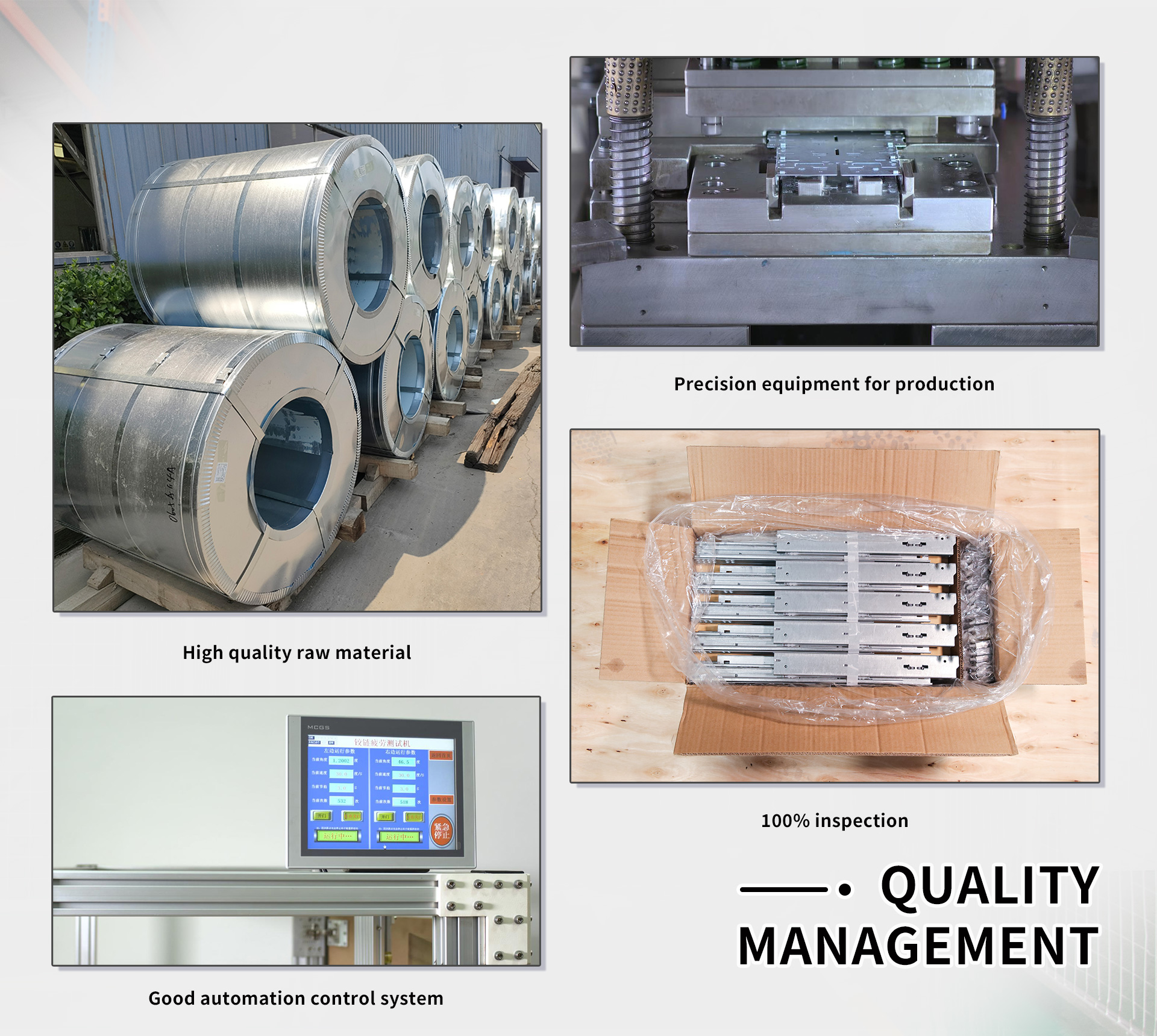

Option 10
Detail Image A Detail Image B
Bottom Banner
Frequently Asked Questions
Q: What is the loading capacity of this slim drawer box?
A: The slim drawer box has a loading capacity of 30kg, designed to provide durable and stable support for residential and commercial furniture.
Q: What height dimensions and lengths are available?
A: It comes in four height dimensions: 63mm, 101mm, 148mm, and 180mm. The length sizes range from 270mm to 550mm to suit various cabinet depths.
Q: How adjustable is the slim box during installation?
A: The drawer box features flexible 3D adjustment with a range of Up & Down ±1.5mm and Left & Right ±1.5mm, ensuring a precise alignment.
Q: What materials are used to construct this metabox?
A: It is manufactured using a combination of high-grade galvanized sheet and cold rolled steel for enhanced strength and durability.
Q: How durable is the synchronized soft closing mechanism?
A: The synchronized soft closing system has been tested to withstand a life cycle of more than 80,000 times and has successfully passed a 48-hour salt spray test.
Q: Do you offer OEM support?
A: Yes, OEM support is welcome. Custom specifications can be integrated to meet your branding and market needs.
